I've been a systems administrator for fifteen years, and during that time one of the most useful pieces of software I've put into production is Tobi Oetiker's MRTG, which stands for Multi Router Traffic Grapher. MRTG is not limited to visualizing network traffic -- it can graph just about any data that can be retrieved with Simple Network Management Protocol (SNMP) or custom scripts.
In this column, I'll provide a walkthrough on how to perform a basic install of MRTG on a Solaris 10 Update 7 x86 VMware virtual machine running in 32-bit mode, monitoring its own network usage. The host name for my example machine is "sol10vm," but yours will be different. MRTG also runs well on other versions of Solaris, other Unix distributions, Mac OS X, most types of Linux and even Windows.
Installing MRTG on Solaris 10: Prerequisites
This MRTG tutorial has a few prerequisites. Most of them are similar to those required for my article on installing Nagios on Solaris, but some pieces of software have been updated. It assumes that you've installed the GNU GCC compiler and GNU Make that come on the Solaris 10 installation disc (or a newer version from Sunfreeware), and that the compiler works properly. In most cases, this just involves adding to your PATH environment variable. If you can run 'gcc' and 'gmake' and get the following output, you're probably good to go.
Another requirement is that the SNMP daemon is configured on your system or the system/router you want to monitor. Solaris 10 uses the Net-SNMP package, and Sun's documentation for it can be found here. For our purposes, you want a public communit...
To continue reading for free, register below or login
To read more you must become a member of SearchDataCenter.com
y string with read-only access to network interface performance data. In short, you can usually edit as needed, then run as root to start things up. To test your SNMP daemon, run . If you get a lot of scrolling output, things are working.
For this demonstration, I'm using the Apache Web Server packages provided by Steve Christensen's Sunfreeware project, specifically Apache 2.2.11 and its dependencies (the expat, libiconv, openldap, sasl, zlib, openssl and libgcc packages). Building MRTG from source also requires that the gd (and its dependencies, xpm, fontconfig and libintl), libpng and jpeg-6b libraries are installed. These packages will install under , so make sure that is in your PATH and that and are in your system library search path (use crle; see "man crle" for details).
Once you've edited the file and started the Web server with , going to "http://yourhostname" with a Web browser should look something like this:
[IMAGE]
Click to enlarge.
Downloading and building MRTG
As of May 2009, the current version of MRTG is 2.16.2, and it can be downloaded from http://oss.oetiker.ch/mrtg/pub/. Once the source code is downloaded, uncompress it into a location of your choice (I like to use out of habit), change into the mrtg-2.16.2 directory, and run . The configure script will check your system for MRTG's prerequisites, then configure the software's build environment. As it finishes running, a message that says, "Config is DONE!" will appear and return you to a command prompt. At this prompt, you can then type "gmake" to build MRTG (it will only take a few seconds), and then "gmake install" to install MRTG under .
Configuring Apache for MRTG
There's not a lot of configuration required for Apache in order to work with MRTG. In most cases, creating a directory for your MRTG graphs and data files (in this case, ) will suffice.
How to configure MRTG
Change to the directory that you've created for your MRTG data files and use MRTG's cfgmaker script to automatically "walk" the SNMP tree of your device (in this case, the Solaris system that everything runs on).
This will create a basic configuration file called mrtg.cfg that is set up to monitor the single Ethernet interface on the machine ("e1000g0"). However, the file still needs minor edits. Open it in your favorite text editor and make the following changes:
- Uncomment the first WorkDir line and change the path to . This tells MRTG where to store its data files.
- Uncomment the Options line and remove ",bits". This makes the graphs update so that the most recent data is on the right-hand side and shows traffic in bytes.
Running MRTG
To test your MRTG installation, run the MRTG script that was installed in , giving it your newly created mrtg.cfg file as a parameter:
These warnings are expected and can be safely ignored the first time you run MRTG with a new configuration file -- it's complaining about not finding older log files to rotate or update.

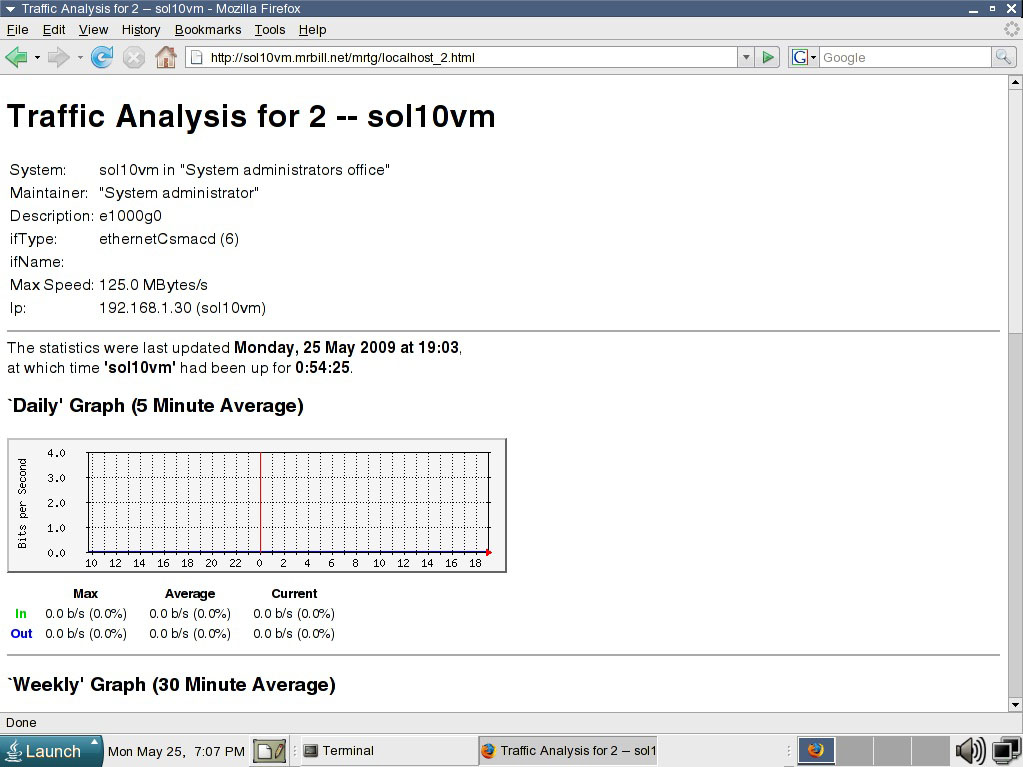

If you look at the list of files that MRTG just created, one of them is HTML. If you open that file with a Web browser -- assuming everything was installed correctly -- the page will look something like this:
[IMAGE]
Click to enlarge.
This is nice, but we want to create a good index page for your MRTG installation, using the indexmaker script provided with the software:
This will result in a nicely formatted MRTG index page that comes in handy once you add multiple systems and interfaces to your MRTG configuration. It gives you a mission control-style overview of everything and lets users drill down to see specific interfaces and historical graphs.

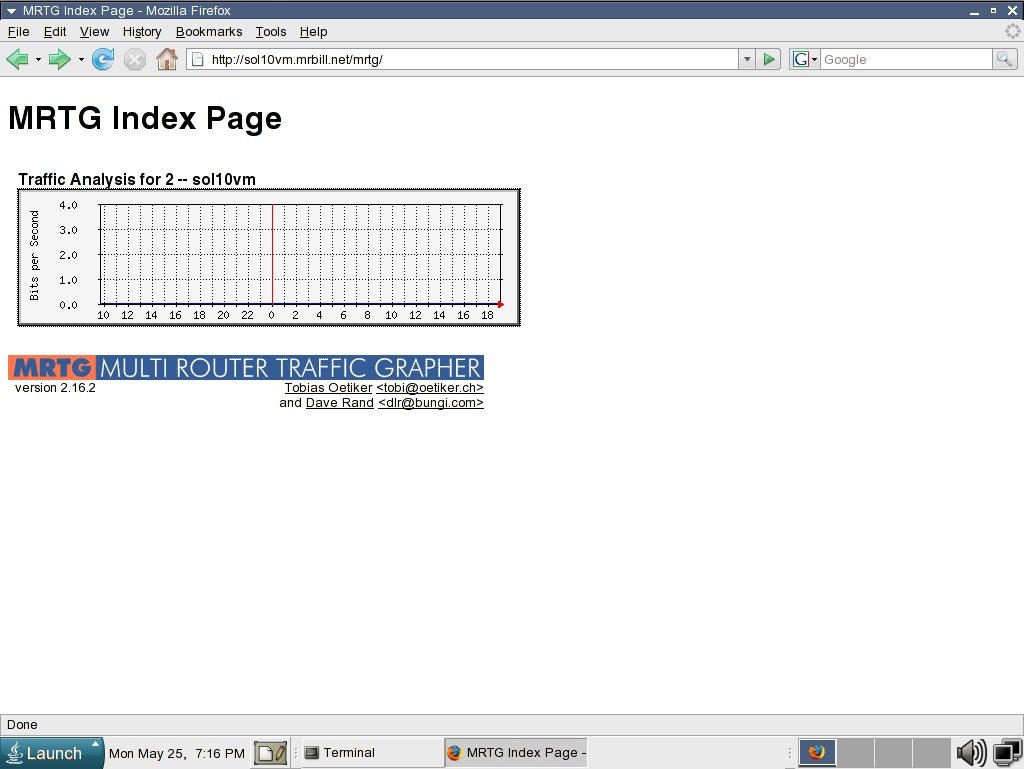

[IMAGE]
